Carbon Fiber Fat-tire E-bike

€1,599.00
Ship in 3-10 Working Days from EuropeShipping detail

€170 OFF Killer Deals, Code: SMASTER170

Color: Satin Black

Satin Black
Aurora Blue
Aurora Green
Gunmetal Grey
Aurora Grey

Frequently Bought Together

Total price:€1,894.00 €1,756.70

FREE SHIPPING

FREE GIFTS

1-YEAR WARRANTY

RIDE NOW PAY LATER

Real World Range Testing

500W Brushless Motor

Samsung 48V/22.5Ah Battery

120km Mileage

25km/h Default Speed

CST 20"*4.0" Tires

150kg Payload

FEATURES

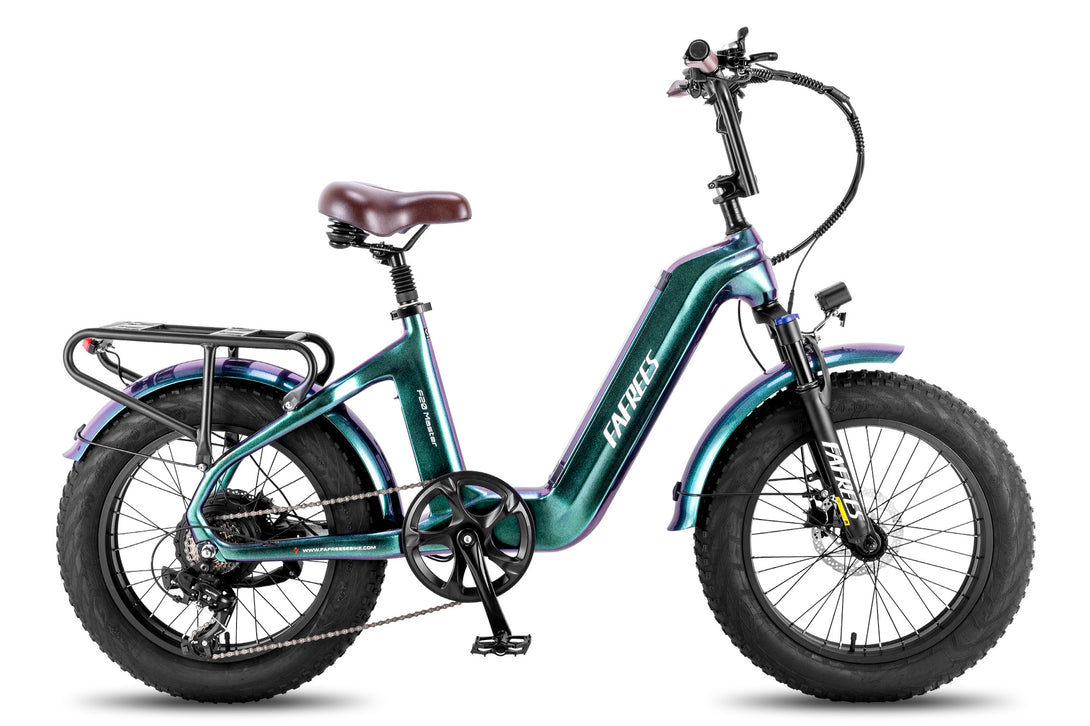

Fafrees F20 Master Carbon Fiber Ebike

Elevate your ride with carbon fiber. The optimal balance of strength and agility. The carbon fiber frame of the F20 Master is complimented by a powerful hub motor and dual shock absorbers to provide a smooth and enjoyable ride. Packed with a 22.5 Ah Samsung battery, the F20 Master is capable of rides of 100 to 120 kilometers on a single charge, while the color LCD screen allows you to keep an eye on important statistics as you ride. Ride comfortably with its cushioned saddle, leather-wrapped handlebars and an upright riding position.

SEAMLESS CARBON FIBER FRAME

The carbon fiber frame not only lightens the bike, but it also improves damping and rigidity. While riding, it absorbs shock and dampens vibration. Its step-through design makes it suitable for men, women, and people of all ages.

48V 500W POWERFUL MOTOR

Enjoy your ride with 500W motor support. With appropriate 690W peak output and 65N.m torque, you can confidently ride on all kinds of terrains with ease.

48V 22.5AH BATTERY WITH SAMSUNG CELL

The bike comes with a 1080Wh portable battery with 21% higher density and 21700 cells, allowing you to travel up to 120 kilometers. Its integrated design lowers the chance of short circuits and moisture difficulties, offering a safe and dependable riding experience.

LCD COLOR DISPLAY

The high-definition LCD display offers a variety of features with easy control, and presets 3 speed levels. The large-screen shows various data such as speed, battery, mileage, and gear. It has a walk assistance mode to help your riding whenever you need.

FRONT & REAR SHOCK ABSORBERS

Front suspension (Travel: 50mm) and shock seat tube (Travel: 50mm) provide immediate and long-lasting shock absorption for increased riding comfort for your weight and riding terrains. With lockout adjustment, you can control the soft and hard stroke of the fork to suit various road conditions.

DUAL HYDRAULIC BRAKES

The hydraulic brake system with 160mm long lasting pads and ball ramp actuation system gives a silky smooth feel at the lever and incredible gripping power. It significantly reduces the braking distance to just one meter and our reaction time to one second.

20" * 4.0" INCH FAT TIRES

4.0 fat tire with stronger friction that can adapt to a variety of riding environments like snow road, sand road, mud road, gravel road and also flat terrain.

SHIMANO 7 SPEED GEAR SHIFT SYSTEM

The Shimano 7-gear shift system facilitates responding to uphill riding scenarios, downward flat plane, or stop-and-go outdoor riding easier. When used effectively under various riding circumstances, it can help improve the battery's range by up to 15%.

FRONT AND REAR BRAKE LIGHTS

A bright front light illuminates the road curves better. The rear brake light signals when you are barking. Escort your day and night riding expeditions.

SILICONE SADDLE

The silicone saddle has a pressure-relieving design that is both comfortable and ergonomic. Have a safe and enjoyable long-distance journey.

Specifications
[A] Max. Seat Height 102 CM
[B] Min. Seat Height 88 CM
[C] Standover Height 37 CM
[D] Frame Size 40 CM
[E] Max. Handlebar Height 111 CM
[F] Min. Handlebar Height 111 CM
[G] Bottom Bracket Height 28 CM
[H] Top Tube Length 65 CM
[I] Wheelbase Length 112 CM
[J] Total Length 172 CM
Range
100-120KM Range
Speed
Default 25 KM/H
Pedal Assist
3 levels
Suspension
Front Spring Fork&Seat Shock Absorber
Transmission
SHIMANO 7 Speed
Tires
CST 20"*4.0"
Folding parts
N/A
Bike Weight
32KG
Weight Capacity
150KG
Rider Height
165-200CM
Motor
500W(Sustained) 690W(Peak), 48V Brushless Rear Hub Motor
Maximum Torque
60N.M
Battery
Lithium-ion 48V, 22.5Ah (1080Wh) with Samsung cells
Charger
48V 3AH Charger, 7 Hours Charging
Display
LCD Smart Easy Read Display, Colorful screen
Sensor
Cadence Sensor
Frame
Carbon Fiber
Handlebars
Aluminum 25.4mm, 660mm
Fork
Spring suspension, 50mm travel
Brakes
Hydraulic Disc Brakes
Transmission
SHIMANO 7 Speed
Wheels
Aluminum 36h Front & Rear
Tubes
Butyl Rubber, Schrader Valve
Headlight
LED Light
TailLight
Brake Light
Chain Ring
170mm w/ 52T
Pedals
Platform Pedals
Seat
Silicone Seat
Seatpost
Aluminum Alloy, 33.9*350mm with Shock Absorbing
Kickstand
Included, Rear Mount
